Waveshare BME280 Environmental Sensor Temperature Humidity Barometric Pressure Atmospheric Pressure Support I2C and SPI Interface Compatible with
Preces #:
85151358
€ 20
Price Details
Excluding Shipping & Custom charges ( Shipping and custom charges will be calculated on checkout )
*All items will import from ASV
0 ratings
Uzrakstīt atsauksmi
Noliktavā
Importēts no veikala USA
QTY:
Noliktavā palikusi tikai 1 prece.
Pasūtiet tūlīt un saņemiet to Trešdiena, Augusts 05
Secured transaction
Ubuy works hard to protect your security and privacy. Our advanced payment security system ensures confidentiality by encrypting your information during transmission using AES (Advanced Encryption Standards) and SSL (Secure Socket Layer) protocols. Your payment details are 100% secure as we do not share your payment details with third party sellers.
Our Top Logistics Partners

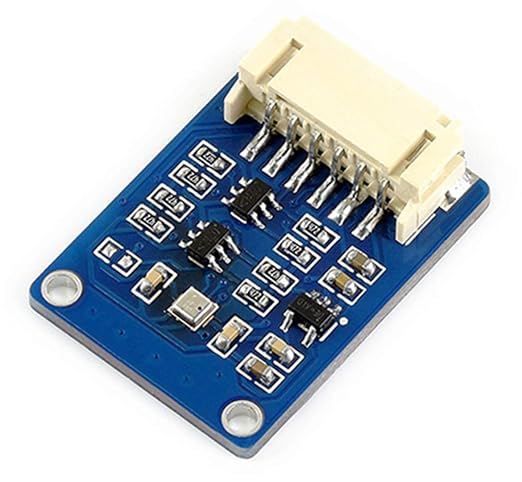

A tiny sensor breakout with BME280 onboard, sensing environmental temperature, humidity, and barometric pressure.
Fast
Shipping
Free
Return*
Secure Packaging
100% Original Products
PCI DSS Compliance
ISO 27001 Certified
Note: Step Down Voltage Transformer required for using electronics products of ASV store (110-120). Recommended power converters Pērc tagad.
What Stands Out
Versatile Interfaces
Supports both I2C and SPI connections, ensuring seamless integration into various projects and applications, catering to different user needs and hardware requirements.
Robust Voltage Compatibility
Compatible with both 3.3V and 5V voltage levels, making it flexible for use in a wide range of electronics, from hobbyist projects to professional applications.
Comprehensive Environmental Data
Measures temperature, humidity, and barometric pressure, providing users with essential environmental information, ideal for weather stations and indoor climate monitoring.
Produkta informācija
- A tiny sensor breakout with BME280 onboard, sensing environmental temperature, humidity, and barometric pressure. It supports both I2C and SPI interfaces, also is compatible with 3.3V/5V voltage levels. Due to its ultra small form factor, low power consumption, high precision with stability, the BME280 Environmental Sensor is suited for applications such as environment monitoring, weather forecast, altimeter, and IoT projects, and so on.
- Supports I2C (default), configurable slave address. Supports SPI, switch to SPI via I/O setting.
- Temperature sensing: -40~85°C (resolution 0.01°C, accuracy ±1°C). Humidity sensing: 0~100%RH (resolution 0.008%RH, accuracy ±3%RH, response time 1s, delay ≤2%RH). Barometric pressure sensing: 300~1100 hPa (resolution 0.18Pa, accuracy ±1hPa).

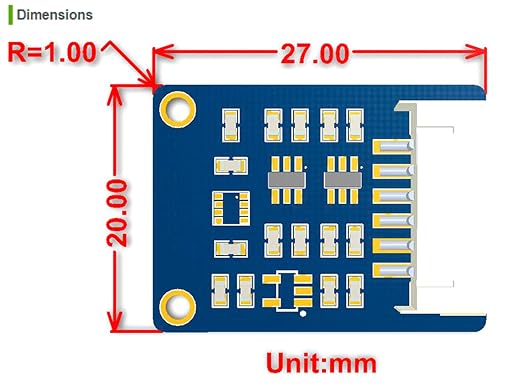

- Power consumption: <0.1mA@1Hz (H,P,T). Dimension: 27mm x 20mm. Mounting hole size: 2.0mm.
- Onboard voltage level translator, compatible with 3.3V/5V operating voltage. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32).
| Maximum Supply Voltage | 5 Volts |
| Measurement Accuracy | �1°C, ±3%RH, ±1hPa |
| Measuring Range | -40~85°C (temperature), 0~100%RH (humidity), 300~1100 hPa (barometric pressure) |
| Mounting Type | Panel Mount |
| Output Type | Digital |
| Response Time | 1 seconds |
| Upper Temperature Rating | 85 Degrees Celsius |
| Material Type | Silicon |
| Style Name | Modern |
| Brand Name | Bicool |
| Model | BME280 |
| UPC | 779172279384 |
| Manufacturer | Bicool |
| Part Number | BME280 Environmental Sensor |
| Item Weight | 0.01 Kilograms |
| Brand | Bicool |
| Material | Silicon |
| Style | Modern |
Who Should Buy?
-
Weather Enthusiasts
Ideal for hobbyists monitoring environmental conditions, providing reliable and accurate temperature, humidity, and pressure data.
-
Educational Projects
Perfect for students and educators creating experiments that require real-time environmental data sensing and monitoring.
-
IoT Developers
Suitable for integrating into Internet of Things projects, offering I2C and SPI compatibility for seamless connectivity.
-
High-Precision Needs
Not suitable for applications requiring industrial-grade accuracy in temperature and pressure measurements.
-
Battery-Powered Devices
May not be ideal for low-power applications as continuous polling can drain batteries quickly.
-
Non-Technical Users
Difficult for users without programming skills to set up and integrate effectively into projects.
PRODUKTA APRAKSTS
Vai jums ir kādi jautājumi? Terzet ar mums
Klientu jautājumi un atbildes
-
jautājums:
What is the operating voltage of the BME280 Environmental Sensor?
atbildi: The operating voltage is 3.3V/5V. -
jautājums:
What communication interfaces does the sensor support?
atbildi: It supports I2C (default) and SPI interfaces. -
jautājums:
What are the temperature, humidity, and barometric pressure sensing ranges of the sensor?
atbildi: Temperature sensing: -40~85°C, humidity sensing: 0~100%RH, and barometric pressure sensing: 300~1100 hPa. -
jautājums:
Where can I find the manuals?
atbildi: You can find the user manual at the following link: https://www.waveshare.com/wiki/BME280_Environmental_Sensor
Bicool Temperature Probes & Sensors Editorial Review
The Waveshare BME280 Environmental Sensor has received mixed reviews from customers. While some users found it easy to set up and use on devices like Raspberry Pi, others experienced issues such as the sensor randomly dropping off I2C. One user mentioned that they were able to get the sensor up and running on multiple Raspberry Pi devices and that it worked great initially. However, they later encountered problems with the sensor randomly dropping off I2C, leading to uncertainty about the cause of the issue. Another user noted the lack of documentation as a significant drawback, making it challenging to set up the sensor properly, especially for new Raspberry Pi users. Despite these drawbacks, some users found the sensor to be well-made and suitable for their needs, such as monitoring temperature and humidity in a 3D printer enclosure. They appreciated the ease of use and the fact that the sensor comes pre-wired and ready to use. Overall, the Waveshare BME280 Environmental Sensor provides decent performance once set up correctly, but its lack of comprehensive documentation and occasional issues with connectivity could be potential areas for improvement. **
